CCNA1 v5.1 Chapter 10 Exam 2015-2016

Tuesday, April 26, 2016

1. Which two definitions accurately describe the associated application layer protocol? (Choose two.)

SMTP – transfers web pages from web servers to clients

Telnet – provides remote access to servers and networking devices*

DNS – resolves Internet names to IP addresses*

FTP – transfers email messages and attachments

HTTP – enables devices on a network to obtain IP addresses



2. The application layer of the TCP/IP model performs the functions of what three layers of the OSI model? (Choose three.)

physical

session*

network

presentation*

data link

transport

application*



3. Which layer in the TCP/IP model is used for formatting, compressing, and encrypting data?

internetwork

session

presentation

application*

network access



4. What are two characteristics of the application layer of the TCP/IP model? (Choose two.)

responsibility for logical addressing

responsibility for physical addressing

the creation and maintenance of dialogue between source and destination applications*

closest to the end user*

the establishing of window size



5. A manufacturing company subscribes to certain hosted services from its ISP. The services that are required include hosted world wide web, file transfer, and e-mail. Which protocols represent these three key applications? (Choose three.)

FTP*

HTTP*

DNS

SNMP

DHCP

SMTP*



6. What is an example of network communication that uses the client-server model?

A user uses eMule to download a file that is shared by a friend after the file location is determined.

A workstation initiates an ARP to find the MAC address of a receiving host.

A user prints a document by using a printer that is attached to a workstation of a coworker.

A workstation initiates a DNS request when the user types www.cisco.com in the address bar of a web browser.*



7. Two students are working on a network design project. One student is doing the drawing, while the other student is writing the proposal. The drawing is finished and the student wants to share the folder that contains the drawing so that the other student can access the file and copy it to a USB drive. Which networking model is being used?

peer-to-peer*

client-based

master-slave

point-to-point



8. What do the client/server and peer-to-peer network models have in common?

Both models have dedicated servers.

Both models support devices in server and client roles.*

Both models require the use of TCP/IP-based protocols.

Both models are used only in the wired network environment.



9. What is an advantage for small organizations of adopting IMAP instead of POP?

Messages are kept in the mail servers until they are manually deleted from the email client.*

When the user connects to a POP server, copies of the messages are kept in the mail server for a short time, but IMAP keeps them for a long time.

IMAP sends and retrieves email, but POP only retrieves email.

POP only allows the client to store messages in a centralized way, while IMAP allows distributed storage.



10. Which application layer protocol uses message types such as GET, PUT, and POST?

DNS

DHCP

SMTP

HTTP*

POP3



11. When retrieving email messages, which protocol allows for easy, centralized storage and backup of emails that would be desirable for a small- to medium-sized business?

IMAP*

POP

SMTP

HTTPS



12. Which three statements describe a DHCP Discover message? (Choose three.)

The source MAC address is 48 ones (FF-FF-FF-FF-FF-FF).

The destination IP address is 255.255.255.255.*

The message comes from a server offering an IP address.

The message comes from a client seeking an IP address.*

All hosts receive the message, but only a DHCP server replies.*

Only the DHCP server receives the message.



13. What part of the URL, http://ift.tt/1YRYw7B, represents the top-level DNS domain?

.com*

www

http

index



14. Which two tasks can be performed by a local DNS server? (Choose two.)

providing IP addresses to local hosts

allowing data transfer between two network devices

mapping name-to-IP addresses for internal hosts*

forwarding name resolution requests between servers*

retrieving email messages



15. Which phrase describes an FTP daemon?

a diagnostic FTP program

a program that is running on an FTP server*

a program that is running on an FTP client

an application that is used to request data from an FTP server



16. Which statement is true about FTP?

The client can choose if FTP is going to establish one or two connections with the server.

The client can download data from or upload data to the server.*

FTP is a peer-to-peer application.

FTP does not provide reliability during data transmission.



17. What is true about the Server Message Block protocol?

Different SMB message types have a different format.

Clients establish a long term connection to servers.*

SMB messages cannot authenticate a session.

SMB uses the FTP protocol for communication.



18. Which application layer protocol is used to provide file-sharing and print services to Microsoft applications?

HTTP

SMTP

DHCP

SMB*



19. Fill in the blank.

What is the acronym for the protocol that is used when securely communicating with a web server? __HTTPS__



20. Fill in the blank.

The HTTP message type used by the client to request data from the web server is the __GET__  message.​



21. Fill in the blank.

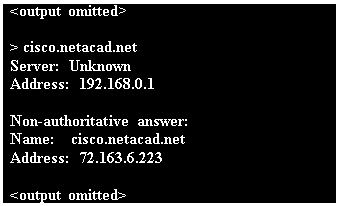

Refer to the exhibit.

What command was used to resolve a given host name by querying the name servers? __NSLOOKUP__



22. Match a statement to the related network model. (Not all options are used.)

Place the options in the following order:

peer-to-peer network

[+] no dedicated server is required
[+] client and server roles are set on a per request basis

peer-to-peer aplication

[#] requires a specific user interface
[#] a background service is required

23. Match the function to the name of the application. (Not all options are used.)

Place the options in the following order:

— not scored —
DHCP -> dynamically assigns IP address to clients
DNS -> maps URLs to numerical addresses
IMAP -> allows viewing of messages on email clients
HTTP -> displays web pages
SMTP -> sends email messages
— not scored —

24. Open the PT Activity.

Perform the tasks in the activity instructions and then answer the question.

Which PC or PCs are sending FTP packets to the server?

PC_3

PC_1

PC_2*

PC_1 and PC_3



from http://www.ccna5.net/
